U.S. Air Service




AIRCRAFT


OF THE


A E F



CURTISS N9



Development and Operation

As noted in the discussion about the Curtiss JN-4 the design went through a number of iterations before the JN-4D design was achieved. One of these variations was the JN-4B. This version of the JN-4 design was similar to the JN-4A design with a return to low dihedral wings, ailerons on the upper wing only, and no down-thrust configuration of the OX-5 engine.

About this design appeared the U.S. Navy needed an advanced trainer for its hydroplane pilots. The Navy therefore purchased the JN-4B, with the modification of an increase of 10 feet in span of the wings, skid fins on the top wings, extended upper wing ailerons, and a single Burgess-float. Some of these aircraft were powered by the Curtiss OXX-6 engine and others by the 150 hp Hispano-Suiza engine.

Because of the relationship between the Army and the Navy the Navy did not want to be perceived as using an "Army" aircraft. They therefore designated the aircraft as the N-9. Some 560 of these aircraft were built by Curtiss for the Navy with delivery beginning in late 1916.



Aircraft and Flight Characteristics

Wing Span



Upper

53 ft., 3 3/4 inches

Lower

43 ft. 3/8 inches

Length

37 ft. 7 1/4 inches

Height

10 ft. 8 1/2 inches

Weight



Net

2,040 lbs.

Gross

2,550 lbs.

Useful Load



Fuel

179.5 lbs. (29 Gallons)

Oil

37.5 lbs. (5 Gallons)

Pilot

165 lbs.

Passenger

165 lbs.

Maximum Speed

78 mph

Stall Speed

38 mph

Climb



10 minutes

To 3285 ft.

14.4 minutes

To 5000 ft.

Service Ceiling

7,000 ft.

Endurance

1.7 hrs.


References:


  1. Bowers, Peter,Curtiss Aircraft 1904 to 1947
  2. Van Wyen, Adrian O.,Naval Aviation in World War I

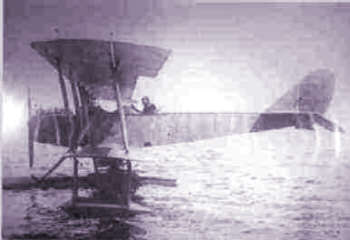

  3. Photo courtesy of the author.
